HL996-02

EN857 2SC

Application： Suitable for water and petroleum-based hydraulic fluids.

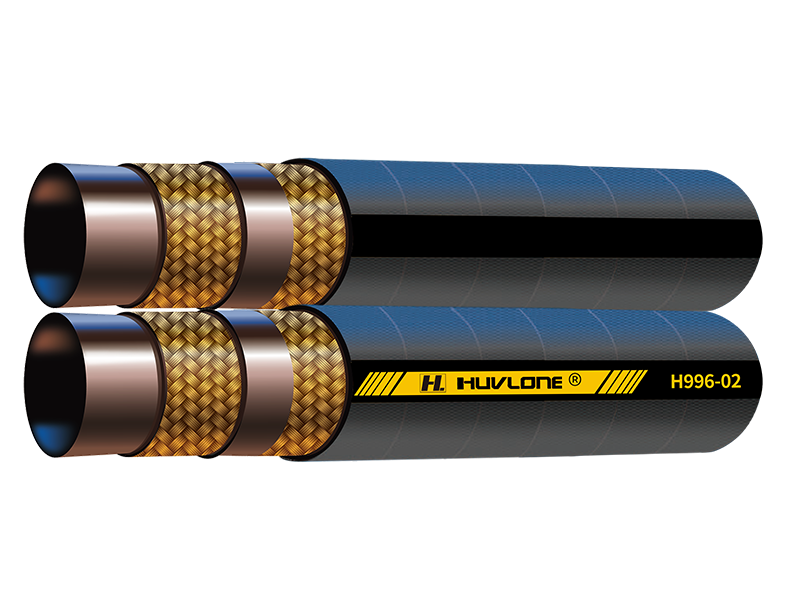

Structure： The hose consists of an oil-resistant synthetic rubber inner layer, two layers of steel wire braided reinforcement, and a weather-resistant black synthetic rubber outer layer. Two hoses are integrally formed into a twin hose (double-line hose) by pressing the outer layers together.
Certified： MSHA、ISO9001、IATF16949, etc.
Package： Carton cases, plastic or wooden reels, etc.
Temperature： -40°C~+100°C(Air:+70°C,Water:+85°C).

Service Hotline 400-100-6819

Service Hotline： 400-100-6819

Part No. 零件号	I.D. 软管内径 (inch)	I.D. 软管内径 (mm)	R.O.D 增强层外径 Min (mm)	R.O.D 增强层外径 Max (mm)	O.D 软管外径 Max (mm)	O.D 连体外径 Max (mm)	MAX W.P. 最大工作压力 (Mpa)	MAX W.P. 最大工作压力 (psi)	MIN B.P. 最小爆破压力 (Mpa)	MIN B.P. 最小爆破压力 (psi)	MIN B.R 最小弯曲半径 (mm)	WEIGHT 参考重量 (Kg/m)
HL996-02-04	1/4"	6.4	10.6	11.7	14.2	28.4	40.0	5800	160	23200	75	0.57
HL996-02-05	5/16"	7.9	12.1	13.3	16.0	32.0	35.0	5075	140	20300	85	0.67
HL996-02-06	3/8"	9.5	14.4	15.6	18.3	36.6	33.0	4785	132	19140	90	0.80
HL996-02-08	1/2"	12.7	17.5	19.1	21.5	43.0	27.5	3988	110	15950	130	0.96
HL996-02-10	5/8"	15.9	20.5	22.3	24.7	49.4	25.0	3625	100	14500	170	1.11
