Fiber-reinforced hose

Fiber-reinforced hoses utilize woven or wound synthetic fibers as reinforcement layers. These hoses are characterized by their lightweight and small bending radius, making them suitable for transporting petroleum-based hydraulic oils, lubricating oils, gasoline, fuel oil, water, and air, meeting the general requirements of industrial hoses.

HL664-02

SAE J517 100R3

Application： Suitable for water and petroleum-based hydraulic fluids, and pin-prick needed when the hoses are used for compressed air.
Temperature： -40°C~+100°c(Air:+70°C,Water:+85°C).
Structure： The hose consists of oil resistant synthetic rubber for inner tube, two layers of textile for the reinforcement, and weather resistant synthetic black rubber for cover. 3/16" up to 1"(1" included )we could produce wrapped cover and smooth cover;Sizes abov

Inquire Now Read more

HL665-02

SAE J517 100R4

Application： Suitable for water and petroleum-based hydraulic fluids.
Temperature： -40°C ~+100°C(Air:+70°C,Water:+85°C).
Structure： The hose consists of oil resistant synthetic rubber for inner tube, one layer of textile and steel wire inserted for the reinforcement,and weather resistant synthetic black rubber for cover.

Inquire Now Read more

HL667-01

SAE J517 100R6

Application： Suitable for water and petroleum-based hydraulic fluids, and pin-prick needed when the hoses are used for compressed air.
Temperature： -40°C~+100°c(Air:+70°C,Water:+85°C).
Structure： The hose consists of oil resistant synthetic rubber for innertube, one layer of fiber/textile braided for reinforcement, and weatherresistant synthetic black rubber for cover. 3/16" up to 1"(1" included )we could produce wrapped cover and smooth cover;Siz

Inquire Now Read more

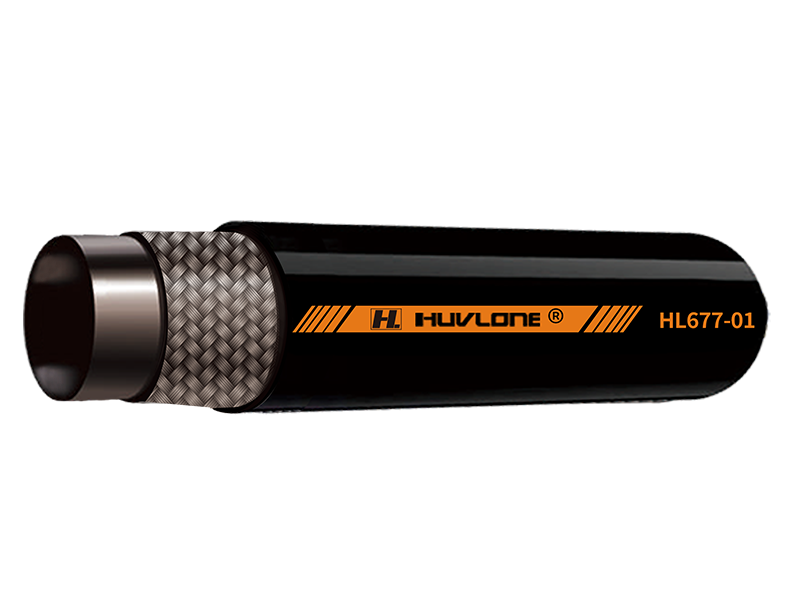

HL677-01

SAE J517 100R7

Application： Suitable for water and petroleum-based hydraulic fluids. Widely used in the fields of liquid transportation in agricultural machinery,earthmoving machinery, engineering machinery,and other equipment.
Temperature： -40°C~+100°C.
Structure： The hose consists of thermoplastic inner tube with hydraulic fluids resistance, synthetic fiber or steel wire as reinforcement,thermoplastic cover with hydraulic fluids and weather conditions resistance. Twin hose or multi lines hose avaliable with conduc

Inquire Now Read more

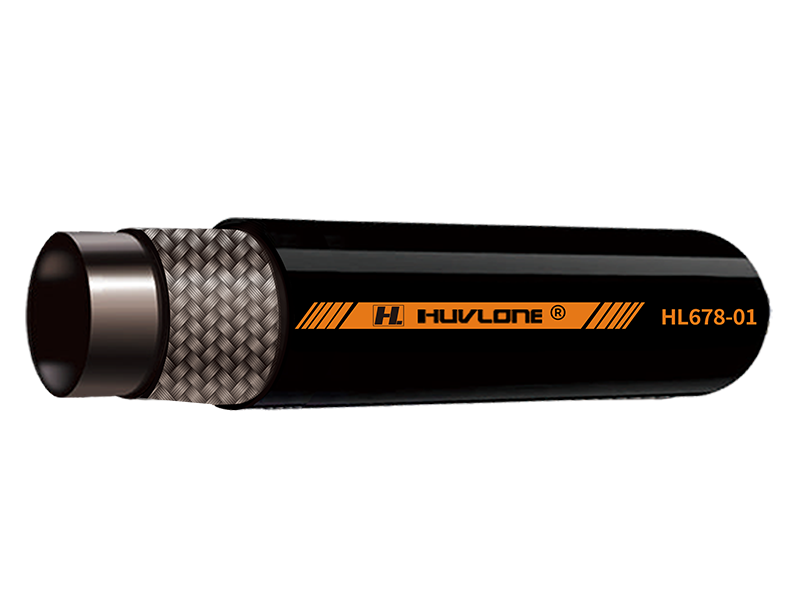

HL678-01

SAE J517 100R8

Application： Suitable for water and petroleum-based hydraulic fluids.
Temperature： -40℃~±100℃。
Structure： The hose consists of thermoplastic inner tube with hydraulic fluids resistance, synthetic fiber or steel wire as reinforcement,thermoplastic cover with hydraulic fluids and weather conditions resistance. Twin hose or multi lines hose avaliable with conduc

Inquire Now Read more

HL994-01

Fiber-reinforced hose

Application： Air, water, water ethylene glycol, oil-water emulsion, antifreeze, lubricating oil and petroleum-based hydraulic oil. When used for compressed air, the hose needs to be needled.
Temperature： -40°C to +100°C.(Air :+70°C. Water :+85°C)
Structure： The hose is composed of a synthetic rubber inner rubber layer, a fiber braided reinforcing layer and a synthetic rubber outer rubber layer.

Inquire Now Read more

HL995-01

Comply with/exceed EN854 1TE

Application： It is suitable for petroleum-based or water-based hydraulic fluids. When used for compressed air, the hose needs to be needled.
Temperature： -40°C to +100°C.(Air :+70°C. Water :+85°C)
Structure： The hose is composed of an inner rubber layer made of oil-resistant synthetic rubber, a layer of fiber braided reinforcing layer and an outer rubber layer made of weather-resistant black synthetic rubber

Inquire Now Read more

HL995-02

Comply with/exceed EN854 2TE

Application： It is suitable for petroleum-based or water-based hydraulic fluids. When used for compressed air, the hose needs to be needled.
Temperature： -40°C to +100°C.(Air :+70°C. Water :+85°C)
Structure： The hose is composed of an oil-resistant synthetic rubber inner rubber layer, one or two layers of fiber braided reinforcing layers, and a weather-resistant black synthetic rubber outer rubber layer
