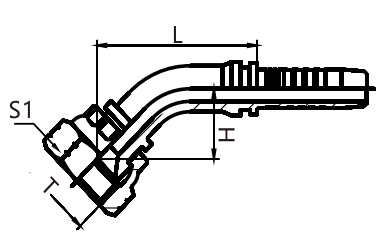

| 代号 | 螺纹T | 软管 | 尺寸 | |||||
| THREAD T | 公称内径DN | 标号DASH | L | H | S1 | |||
| S26741-04-04 | 7/16"X20 | 6 | 04 | 33.8 | 10 | 14 | ||
| S26741-05-04 | 1/2"X20 | 6 | 04 | 33.8 | 10 | 17 | ||
| S26741-05-05 | 1/2"X20 | 8 | 05 | 33.7 | 10 | 17 | ||
| S26741-06-05 | 9/16"X18 | 8 | 05 | 34.7 | 11 | 19 | ||
| S26741-06-06 | 9/16"X18 | 10 | 06 | 37 | 11 | 19 | ||
| S26741-06-08 | 9/16"X18 | 13 | 08 | 46.3 | 15 | 19 | ||
| S26741-08-08 | 3/4 "X16 | 13 | 08 | 46.3 | 15 | 22 | ||
| S26741-08-10 | 3/4" X16 | 16 | 10 | 55.2 | 16 | 22 | ||
| S26741-10-10 | 7/8" X14 | 16 | 10 | 55.2 | 16 | 27 | ||
| S26741-10-12 | 7/8"X14 | 19 | 12 | 63.7 | 21 | 27 | ||
| S26741-12-10 | 1.1/16"X12 | 16 | 10 | 60.2 | 21 | 32 | ||
| S26741-12-12 | 1.1/16"X12 | 19 | 12 | 63.7 | 21 | 32 | ||
| S26741-16-16 | 1.5/16"X12 | 25 | 16 | 73.4 | 24 | 41 | ||
| S26741-20-20 | 1.5/8"X12 | 32 | 20 | 92.8 | 32 | 50 | ||
| S26741-24-24 | 1.7/8"X12 | 38 | 24 | 113.1 | 42 | 60 | ||
| 注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为S26742-XX-XX。 | ||||||||
