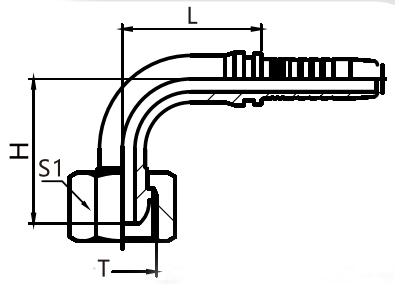

代号 PA RT NO. |
螺纹T | 软管 | 尺寸 | |||||
| THREAD T | 公称内径DN | 标号 DASH | L | H | S1 | |||
| HL20191-14-04T | M14X1.5 | 6 | 04 | 32 | 35.5 | 17 | ||
| HL20191-16-04T | M16X1.5 | 6 | 04 | 32 | 34.5 | 19 | ||
| HL20191-16-05T | M16X1.5 | 8 | 05 | 33 | 41 | 19 | ||
| HL20191-18-06T | M18X1.5 | 10 | 06 | 36.5 | 44.5 | 22 | ||
| HL20191-22-08T | M22X1.5 | 13 | 08 | 43.5 | 52 | 27 | ||
| HL20191-27-10T | M27X1.5 | 16 | 10 | 55 | 54 | 32 | ||
| HL20191-30-12T | M30X1.5 | 19 | 12 | 64 | 67 | 36 | ||
| HL20191-39-16T | M39X2 | 25 | 16 | 74 | 72 | 46 | ||
| HL20191-45-20T | M45X2 | 32 | 20 | 91.5 | 85 | 55 | ||
| HL20191-52-24T | M52X2 | 38 | 24 | 109 | 100 | 60 | ||
| 注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL20192-XX-XX。 | ||||||||
