河南汇龙液压科技股份有限公司-HL26711

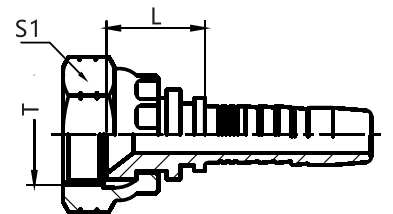

代号 PA RT NO.	螺纹T	软管		尺寸
代号 PA RT NO.	THREAD T	公称内径DN	标号DAHLH	L	S1
HL26711-04-04	7/16"X20	6	04	15	14
HL26711-05-04	1/2"X20	6	04	15.5	17
HL26711-05-05	1/2"X20	8	05	15.5	17
HL26711-06-04T	9/16"X18	6	04	15.5	19
HL26711-06-05	9/16"X18	8	05	15.5	19
HL26711-06-06	9/16"X18	10	06	15.5	19
HL26711-07-06	9/16"X18	13	08	16	19
HL26711-08-06T	3/4"X16	10	06	17.5	22
HL26711-08-08	3/4"X16	13	08	18	22
HL26711-08-10	3/4" X16	16	10	19	22
HL26711-10-08T	7/8"X14	13	08	18	27
HL26711-10-10	7/8" X14	16	10	20	27
HL26711-10-12	7/8 " X14	19	12	20	27
HL26711-12-08T	1.1/16"X12	13	08	20	32
HL26711-12-10T	1.1/16"X12	16	10	21.5	32
HL26711-12-12	1.1/16"X12	19	12	21.5	32
HL26711-14-12T	1.3/16"X12	19	12	21.5	36
HL26711-16-12T	1.5/16"X12	19	12	22	41
HL26711-16-16	1.5/16"X12	25	16	23	41
HL26711-20-16T	1.5/8"X12	25	16	25	50
HL26711-20-20	1.5/8"X12	32	20	26	50
HL26711-24-20T	1.7/8"X12	32	20	26.5	60
HL26711-24-24	1.7/8"X12	38	24	26.5	60
HL26711-32-24T	2.1/2"X12	38	24	26.5	75
HL26711-32-32T	2.1/2"X12	51	32	27	75
注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL26712-XX-XX。
