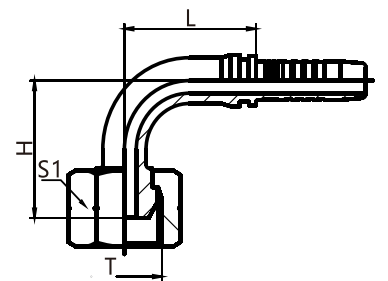

代号 PA RT NO. |
螺纹T | 软管HOHLEBORE | 尺寸 | |||||
| THREAD T | 公称内径DN | 标号DAHLH | L | H | S1 | |||
| HL22691-02-04 | G1/8 "X28 | 6 | 04 | 32 | 27 | 14 | ||
| HL22691-04-04 | G1/4 "X19 | 6 | 04 | 32 | 28 | 19 | ||
| HL22691-04-05 | G1/4"X19 | 8 | 05 | 32.5 | 31.5 | 19 | ||
| HL22691-04-06 | G1/4 " X19 | 10 | 06 | 36.5 | 34 | 19 | ||
| HL22691-06-06 | G3/8"X19 | 10 | 06 | 36.5 | 34 | 22 | ||
| HL22691-06-08 | G3/8 "X19 | 13 | 08 | 44.5 | 42 | 22 | ||
| HL22691-08-08 | G1/2 " X14 | 13 | 08 | 44.5 | 41 | 27 | ||
| HL22691-10-10 | G5/8 " X14 | 16 | 10 | 55 | 51 | 30 | ||
| HL22691-12-12 | G3/4 " X14 | 19 | 12 | 62 | 58 | 32 | ||
| HL22691-16-16 | G1"X11 | 25 | 16 | 74 | 70 | 41 | ||
| HL22691-20-20 | G1.1/4"X11 | 32 | 20 | 91.5 | 85 | 50 | ||
| HL22691-24-24 | G1.1/2"X11 | 38 | 24 | 108 | 100 | 55 | ||
| HL22691-32-32 | G2"X11 | 51 | 32 | 133.8 | 140 | 70 | ||
| 注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL22692-XX-XX。 | ||||||||
