商品名称: HL22641

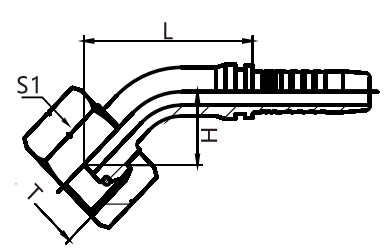

| 代号 PART NO. | 螺纹 T THREAD T | 软管 HOHLE BORE 公称内径 DN | 标号 DAHLH | L | H | S1 |
|---|---|---|---|---|---|---|
| HL22641-02-04 | G1/8"X28 | 6 | 04 | 38.8 | 15 | 14 |
| HL22641-04-04 | G1/4"X19 | 6 | 04 | 38.8 | 15 | 19 |
| HL22641-04-05 | G1/4"X19 | 8 | 05 | 41.7 | 18 | 19 |
| HL22641-04-06 | G1/4"X19 | 10 | 06 | 45 | 19 | 19 |
| HL22641-06-06 | G3/8"X19 | 10 | 06 | 44 | 18 | 22 |
| HL22641-06-08 | G3/8"X19 | 13 | 08 | 54.3 | 23 | 22 |
| HL22641-08-08 | G1/2"X14 | 13 | 08 | 51.3 | 20 | 27 |
| HL22641-10-10 | G5/8"X14 | 16 | 10 | 64.2 | 25 | 30 |
| HL22641-12-12 | G3/4"X14 | 19 | 12 | 71.7 | 29 | 32 |
| HL22641-16-16 | G1"X11 | 25 | 16 | 84.4 | 35 | 41 |
| HL22641-20-20 | G1.1/4"X11 | 32 | 20 | 100.8 | 40 | 50 |
| HL22641-32-32 | G2"X11 | 51 | 32 | 155 | 70 | 70 |
