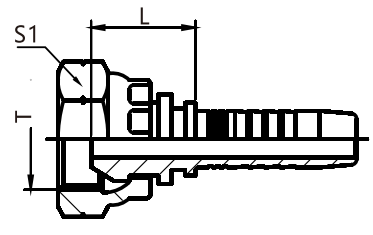

| 代号 | 螺纹T | 软管 | 尺寸 | |||||
| THREAD T | 公称内径DN | 标号DAHLH | L | S1 | ||||
| HL22611-02-04 | G1/8"X28 | 6 | 04 | 16 | 14 | |||
| HL22611-04-04 | G1/4 " X19 | 6 | 04 | 19 | 19 | |||
| HL22611-04-05 | G1/4"X19 | 8 | 05 | 19 | 19 | |||
| HL22611-04-06 | G1/4 " X19 | 10 | 06 | 19 | 19 | |||
| HL22611-06-04T | G3/8"X19 | 6 | 04 | 18 | 22 | |||
| HL22611-06-05T | G3/8 " X19 | 8 | 05 | 19 | 22 | |||
| HL22611-06-06 | G3/8 "X19 | 10 | 06 | 19.5 | 22 | |||
| HL22611-06-08 | G3/8 " X19 | 13 | 08 | 20 | 22 | |||
| HL22611-08-06T | G1/2 "X14 | 10 | 06 | 20.5 | 27 | |||
| HL22611-08-08 | G1/2 " X14 | 13 | 08 | 21.5 | 27 | |||
| HL22611-10-08T | G5/8 "X14 | 13 | 08 | 22.5 | 30 | |||
| HL22611-10-10 | G5/8 " X14 | 16 | 10 | 23 | 30 | |||
| HL22611-12-10T | G3/4 "X14 | 16 | 10 | 23 | 32 | |||
| HL22611-12-12 | G3/4 "X14 | 19 | 12 | 24 | 32 | |||
| HL22611-16-12T | G1"X11 | 19 | 12 | 24 | 41 | |||
| HL22611-16-16 | G1"X11 | 25 | 16 | 26 | 41 | |||
| HL22611-20-16T | G1.1/4"X11 | 25 | 16 | 27.5 | 50 | |||
| HL22611-20-20 | G1.1/4"X11 | 32 | 20 | 30.5 | 50 | |||
| HL22611-24-20T | G1.1/2"X11 | 32 | 20 | 32 | 55 | |||
| HL22611-24-24 | G1.1/2"X11 | 38 | 24 | 31.5 | 55 | |||
| HL22611-32-24T | G2"X11 | 38 | 24 | 33.5 | 70 | |||
| HL22611-32-32 | G2"X11 | 51 | 32 | 34 | 70 | |||
| 注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL22612-XX-XX。 | ||||||||
