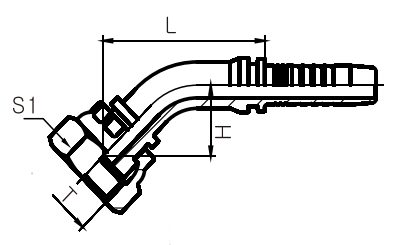

代号 PA RT NO. |
螺纹 T | 软管 HOSEBORE | 尺寸 | |||
|---|---|---|---|---|---|---|
| THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 | |
| S20241-14-04T | M14X1.5 | 6 | 04 | 37 | 13.5 | 17 |
| S20241-14-05 | M14X1.5 | 8 | 05 | 41 | 17.5 | 19 |
| S20241-16-05T | M16X1.5 | 8 | 05 | 42 | 18.5 | 19 |
| S20241-16-06 | M16X1.5 | 10 | 06 | 45 | 19 | 22 |
| S20241-18-06T | M18X1.5 | 10 | 06 | 46 | 20 | 22 |
| S20241-22-08T | M22X1.5 | 13 | 08 | 53 | 21.5 | 27 |
| S20241-27-10T | M27X1.5 | 16 | 10 | 65 | 25.5 | 32 |
| S20241-30-12T | M30X1.5 | 19 | 12 | 70 | 27.5 | 36 |
| S20241-39-16T | M39X2 | 25 | 16 | 84 | 29.7 | 46 |
| S20241-45-20T | M45X2 | 32 | 20 | 94.5 | 34 | 55 |
| S20241-52-24T | M52X2 | 38 | 24 | 110 | 41 | 60 |
| S20241-60-28T | M60X2 | 45 | 28 | 118.5 | 43.6 | 70 |
| S20241-64-32T | M64X2 | 51 | 32 | 128 | 45.5 | 75 |
