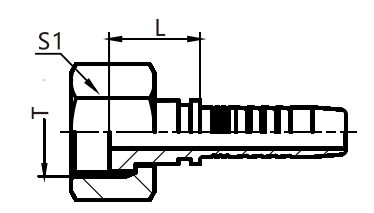

代号 PA RT NO. |
螺纹T | 软管 | 尺寸 | |||||
| THREAD T | 公称内径DN | 标号 DASH | L | S1 | ||||
| S20211-14-04T | M14X1.5 | 6 | 04 | 15.5 | 17 | |||
| S20211-14-05 | M14X1.5 | 8 | 05 | 15.5 | 19 | |||
| S20211-16-05T | M16X1.5 | 8 | 05 | 16.5 | 19 | |||
| S20211-16-06 | M16X1.5 | 10 | 06 | 16.5 | 22 | |||
| S20211-18-06T | M18X1.5 | 10 | 06 | 17.5 | 22 | |||
| S20211-22-08T | M22X1.5 | 13 | 08 | 18.5 | 27 | |||
| S20211-27-10T | M27X1.5 | 16 | 10 | 22 | 32 | |||
| S20211-30-12T | M30X1.5 | 19 | 12 | 21 | 36 | |||
| S20211-36-12T | M36X2 | 19 | 12 | 21 | 41 | |||
| S20211-39-16T | M39X2 | 25 | 16 | 23.5 | 46 | |||
| S20211-45-20T | M45X2 | 32 | 20 | 24.5 | 55 | |||
| S20211-52-24T | M52X2 | 38 | 24 | 25 | 60 | |||
| S20211-60-28T | M60X2 | 45 | 28 | 26 | 70 | |||
| S20211-64-32T | M64X2 | 51 | 32 | 27 | 75 | |||
| 注:1、表中代号用于编织软管。2、如需用于缠绕软管代号改为HL20212-XX-XX。 | ||||||||
