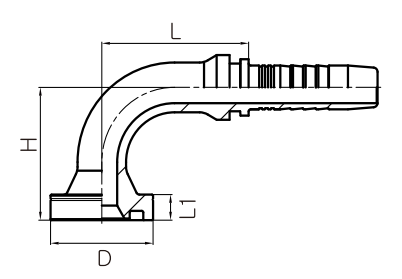

| 代号 PART NO. | 法兰型号 FLANGE SIZE | 软管 HOSE BORE 公称内径 DN | 标号 DASH | L | H | D | L1 |
|---|---|---|---|---|---|---|---|
| HL87691-08-08 | 1/2" | 13 | 08 | 44.5 | 40 | 31.7 | 7.75 |
| HL87691-12-10 | 3/4" | 16 | 10 | 55 | 58 | 41.3 | 8.76 |
| HL87691-12-12 | 3/4" | 19 | 12 | 62 | 58 | 41.3 | 8.76 |
| HL87691-16-12 | 1" | 19 | 12 | 62 | 70 | 47.6 | 9.53 |
| HL87691-16-16 | 1" | 25 | 16 | 74 | 70 | 47.6 | 9.53 |
| HL87691-16-20 | 1" | 32 | 20 | 91.5 | 82 | 47.6 | 9.53 |
| HL87691-20-16 | 1.1/4" | 25 | 16 | 74 | 90 | 54 | 10.29 |
| HL87691-20-20 | 1.1/4" | 32 | 20 | 91.5 | 90 | 54 | 10.29 |
| HL87691-24-20 | 1.1/2" | 32 | 20 | 91.5 | 104 | 63.5 | 12.57 |
| HL87691-24-24 | 1.1/2" | 38 | 24 | 108 | 104 | 63.5 | 12.57 |
| HL87691-32-24 | 2" | 38 | 24 | 108 | 138 | 79.4 | 12.57 |
| HL87691-32-32 | 2" | 51 | 32 | 133.8 | 138 | 79.4 | 12.57 |
